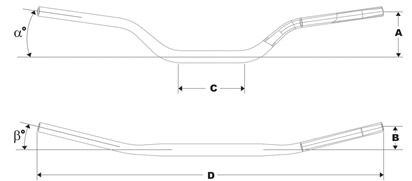

BIKE APPLICATION PART# A B C D alpha beta
All Motorbikes MX-SX-EN 9101 83 55 162 805 10,00 13,50
All Motorbikes TRIAL 9003 110 40 110 816 11,50 9,00
All Motorbikes MX-SX-EN 9004 87 55 160 803 8,00 14,00
All Motorbikes MX-SX-EN 9007 103 54 125 802 10,00 13,00
All Motorbikes MX-SX-EN 9008 97 39 130 800 8,00 10,50
All Motorbikes MX-SX-EN 9009 115 40 140 800 8,50 12,00
All Motorbikes Mini 9011 118 42 120 740 10,50 14,50
Super Moto All 9163 112 105 130 720 11,50 26,00
Super Moto All 9159 85 95 135 725 8,50 23,50
All DSC model Bar Pad 9012
Altezza
Height

Lunghezza totale manubrio
Total handlebar width

Movimento
Sweep

Angolo di elevazione
Elevation angle

Lunghezza parte centrale
Handlebar Center width

Angolo di flessione
Bending angle
